Profiled PV Ribbon for High-Efficiency Solar Module Manufacturing

Profiled PV Ribbon is a specialized, copper-based conductive ribbon engineered with a customized cross-sectional geometry and precision tin-based solder coating. Unlike standard flat ribbons, it is specifically shaped to optimize light reflection, lower shading loss, and reduce electrical resistance in advanced photovoltaic cell interconnections.

Profiled PV Ribbon for Custom Cell Interconnection

Engineered Copper Core

Utilizes high-purity oxygen-free copper substrate to guarantee minimal electrical resistivity and steady conductivity across module circuits.

Customized Geometry

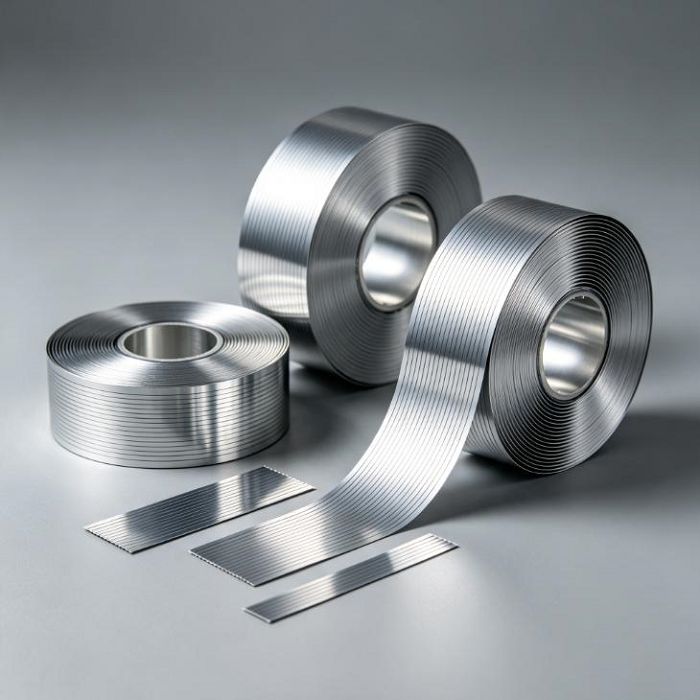

Features precise cross-sectional profiling (such as structured or grooved faces) tailored to specific module optical and structural designs.

Precision Solder Layer

Uniformly coated with tin-based solder alloy to maintain joint integrity, consistent melt behavior, and low contact resistance.

Cell Interconnection Focus

Designed specifically to connect solar cells directly, aiding in current collection while minimizing optical shading on active silicon areas.

Profile Options & Cross-Section Design

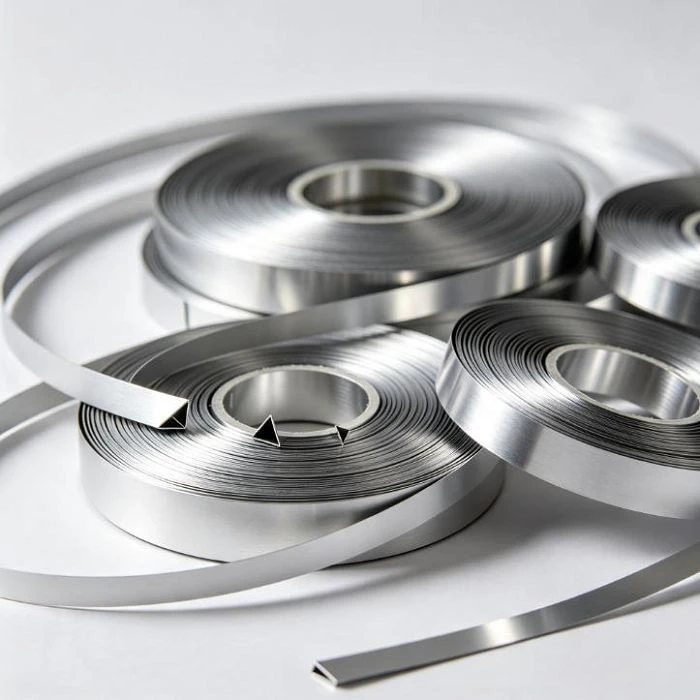

Triangular Profile

Directs incoming sunlight back to the protective glass cover for internal reflection, maximizing light utilization in high-efficiency solar modules.

Trapezoidal Profile

Balances mechanical contact area with reduced top surface shading, ensuring stable soldering pads for specific busbar configurations.

Custom Drawing-Based Profile

Developed based on customer-provided engineering blueprints to match specialized interconnection tooling and proprietary module layouts.

Technical Specifications

Parameter	Specification
Product Type	Profiled PV Ribbon
Base Material	Oxygen-Free Copper
Copper Purity	≥99.95%
Electrical Resistivity	≤0.01724 Ω·mm²/m
Profile Geometry	Custom / Drawing-Based
Ribbon Dimensions	Customized Width and Thickness
Coating Material	Tin-Based Solder Coating
Coating Thickness	Customized per Specification
Dimensional Tolerance	Strict Compliance with Engineering Drawing
Tensile Strength	≥100 MPa
Elongation	≥10%
Spool Packaging	Export-Standard Spools

Copper Material and Solder Coating

Copper Substrate

High-purity copper core ensures low internal electrical losses and stable signal carrying capacity during thermal cycling.

Surface Coating

Tin-based alloy coating provides protective coverage against copper oxidation and enables fast, dependable soldering performance.

Coating Uniformity

Advanced coating controls maintain continuous thickness across contoured surfaces, preventing cold joints and localized weak spots during assembly.

Manufacturing Process

01/

Copper Wire Preparation: High-purity rod selection and preliminary precision drawing ensure uniform base wire dimensions.

02/

Profile Rolling: Precision tooling shapes the cross-section strictly according to approved CAD specifications.

03/

Inline Annealing: Controlled thermal treatment adjusts mechanical grain structure to achieve consistent elongation and tensile properties.

04/

Precision Coating: Hot-dip coating line applies controlled solder layer evenly across the contoured surface.

05/

Dimensional Inspection: Continuous optical sensors verify cross-sectional profiles and overall dimensions in real time.

06/

Spool Winding: Automated winding system arranges ribbon neatly onto spools to prevent twisting and tangles during high-speed stringer operation.

Dimensional Accuracy And Quality Control

Cross-Section Inspection: Optical micro-projectors verify profile geometry against structural drawings before batch release.

Tolerance Measurement: Laser gauge sensors monitor width, thickness, and profile depth across production runs.

Surface Integrity Check: Visual inspection systems detect surface defects, burrs, or uneven solder distributions.

Mechanical Testing: Tensile strength and elongation tests ensure ribbon flexibility complies with automated stringing machine limits.

Applications of Profiled PV Ribbon

Solar Cell Interconnection: Serves as the primary electrical conductor joining individual cells into string arrangements.

High-Efficiency Solar Modules: Applied in premium solar panel designs requiring minimized front-side shading and maximized light capture.

Multi-Busbar Module Layouts: Adapted to low-width, multi-line module configurations to optimize current collection.

Custom Module Designs: Formulated for proprietary module architectures needing tailored soldering profiles and specialized cross-sections.

Customization & Engineering Support

Profile Geometry

Share detailed dimensional blueprints or CAD files defining your cross-sectional needs.

Ribbon Dimensions

Specify required width, base thickness, profile height, and tight dimensional tolerances.

Solder Parameters

Define solder alloy composition, target coating thickness, and process thermal requirements.

Mechanical Properties

Indicate target tensile strength, elongation range, and flexibility thresholds for your automated equipment.

Packaging Requirements

Select standard spool sizes, total ribbon length per spool, and protective packaging styles.

Spooling, Packaging and Supply

Precision Spooling

Wound under controlled tension to prevent ribbon deformation, ensuring smooth payoff during continuous module assembly.

Protective Packaging

Sealed in vacuum moisture-proof bags with desiccant and packed into sturdy shipping cartons.

Traceable Identification

Each spool carries clear production batch labels detailing dimensions, material lot, and test tracking numbers.

Global Shipping Standards

Packaging materials comply with international freight standards to guarantee safe long-distance transit.

Why Specify a Profiled PV Ribbon?

Optimized Cross-Section: Tailors physical geometry to align perfectly with specific module optical and structural designs.

Controlled Electrical Path: Combines verified copper purity with uniform cross-sectional area to keep current path resistance minimal.

Defined Optical Geometry: Enhances light deflection toward active cell regions, boosting total optical efficiency.

Process Compatibility: Matches exact melting and tension parameters required by automated high-speed stringer machinery.

Repeatable Production: Maintains batch-to-batch consistency in dimensions, tempers, and solder thickness for stable yields.

FAQ

Q: What is a profiled PV ribbon?

A: A profiled PV ribbon features a specially shaped cross-section, such as a triangular or grooved surface, designed to improve light capture and electrical efficiency compared to flat ribbons.

Q: What cross-section profiles are available?

A: Standard triangular and trapezoidal profiles are available, along with custom engineered cross-sections manufactured strictly according to technical drawings.

Q: Can ribbon dimensions and solder thickness be customized?

A: Yes, width, thickness, profile height, solder alloy composition, and coating thickness are tailored to project requirements.

Q: What base materials are used for profiled PV ribbons?

A: High-purity oxygen-free copper substrate is used to ensure maximum conductivity, stable mechanical properties, and long-term performance.

Q: Is sample production available prior to bulk orders?

A: Yes, trial sample spools can be produced based on approved drawings for customer testing and equipment validation before mass production.

Q: What details are required to obtain a custom quote?

A: Provide profile drawings, ribbon dimensions, copper specifications, coating thickness, spooling requirements, and estimated volume.
